Z&L Mounting Bracket for 280KG Magnetic Lock Door Access Control

An electromagnetic door lock requires precise alignment between the maglock body mounted on the door frame and the armature plate mounted on the door leaf. If the armature plate is not positioned correctly at the correct height and distance from the maglock face, the two surfaces will not make full contact when the door closes, reducing the holding force below the rated 280KG and potentially allowing the door to be forced open more easily than the lock specification implies.

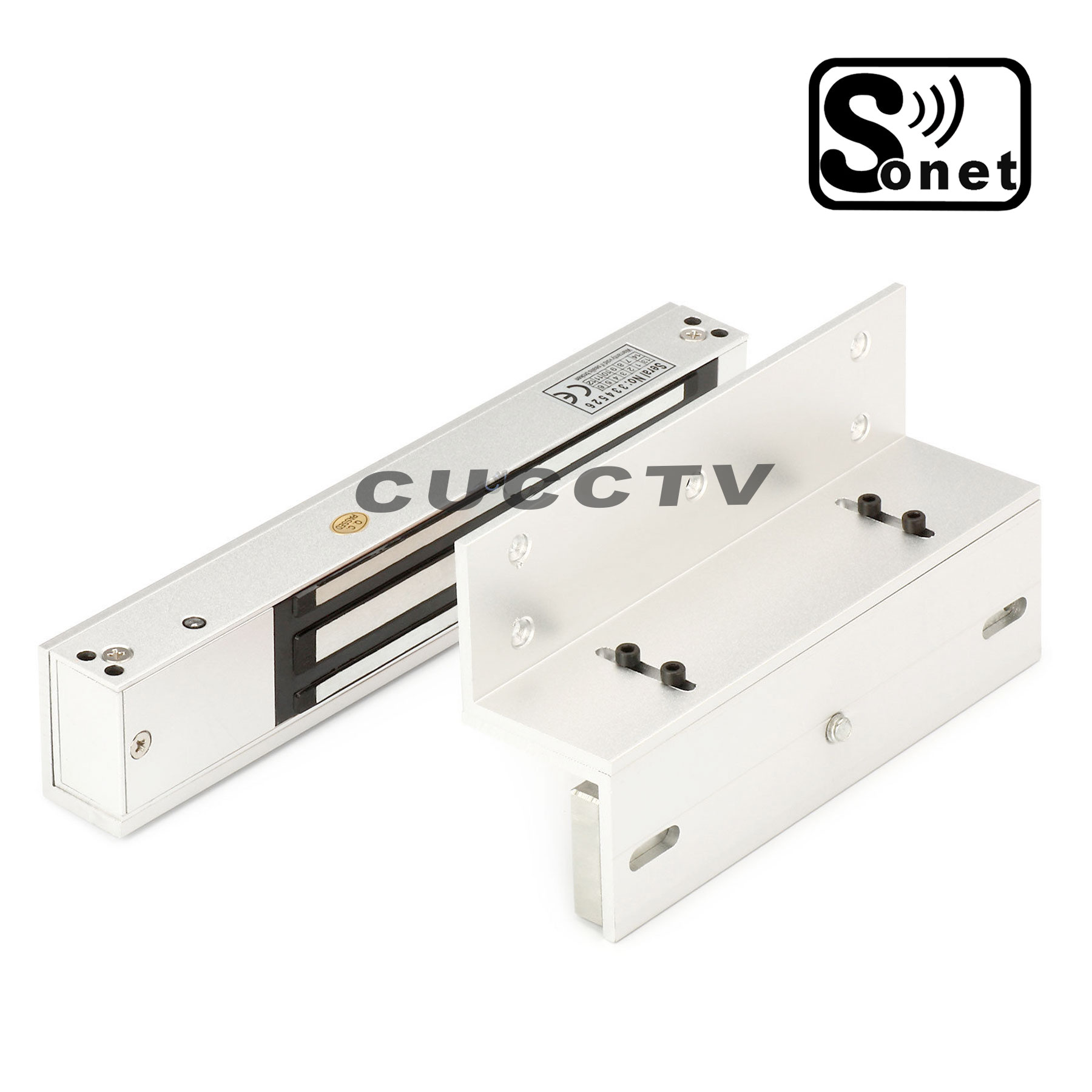

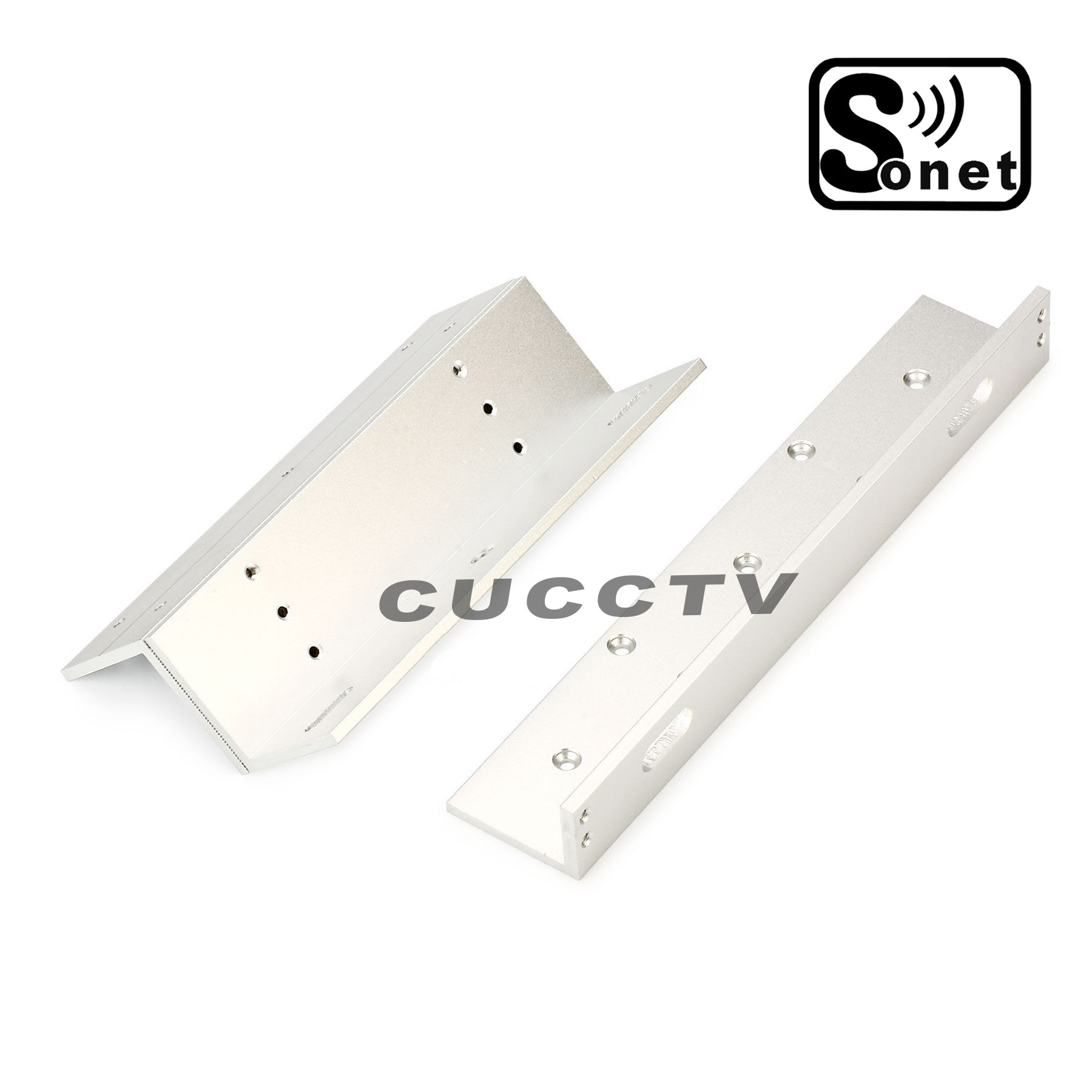

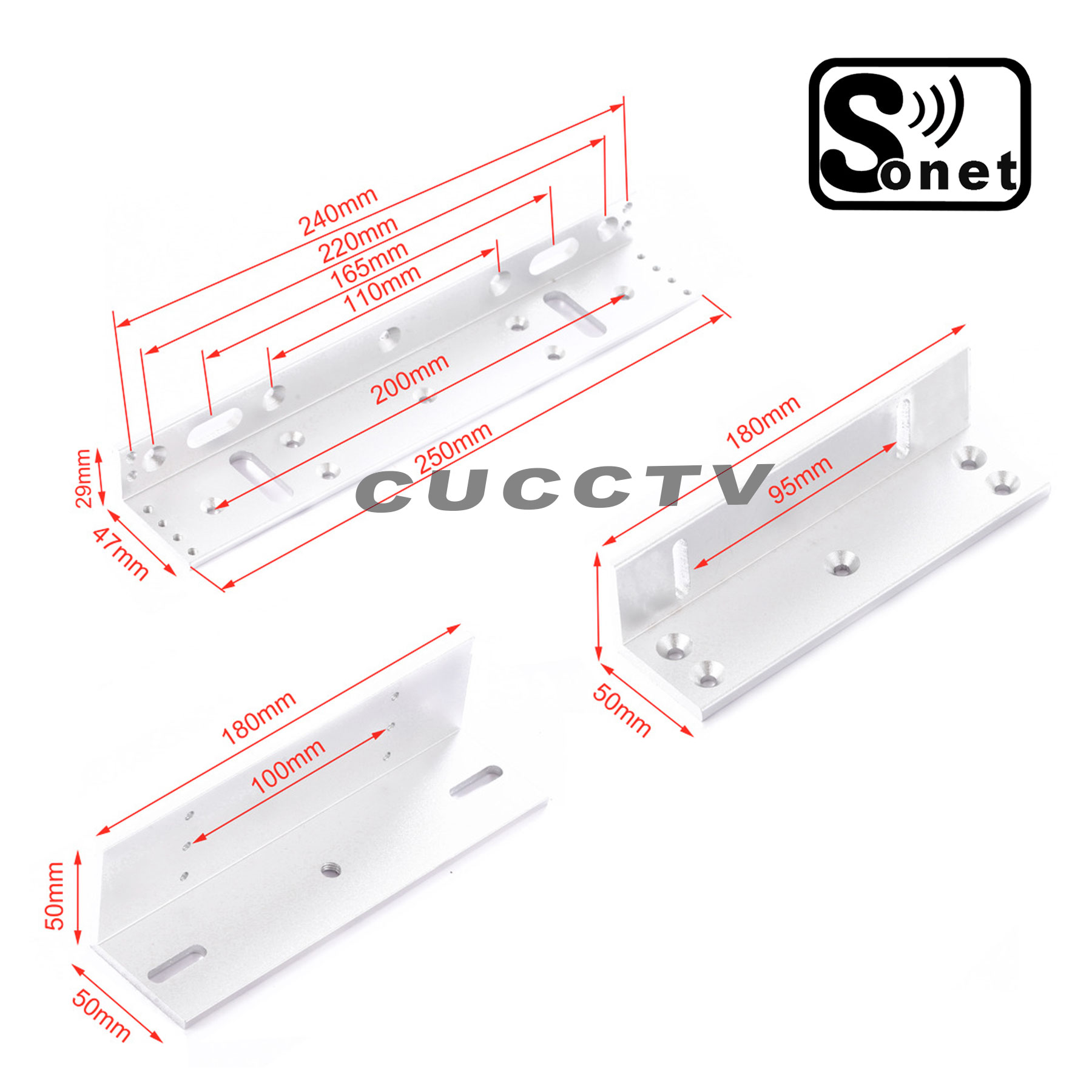

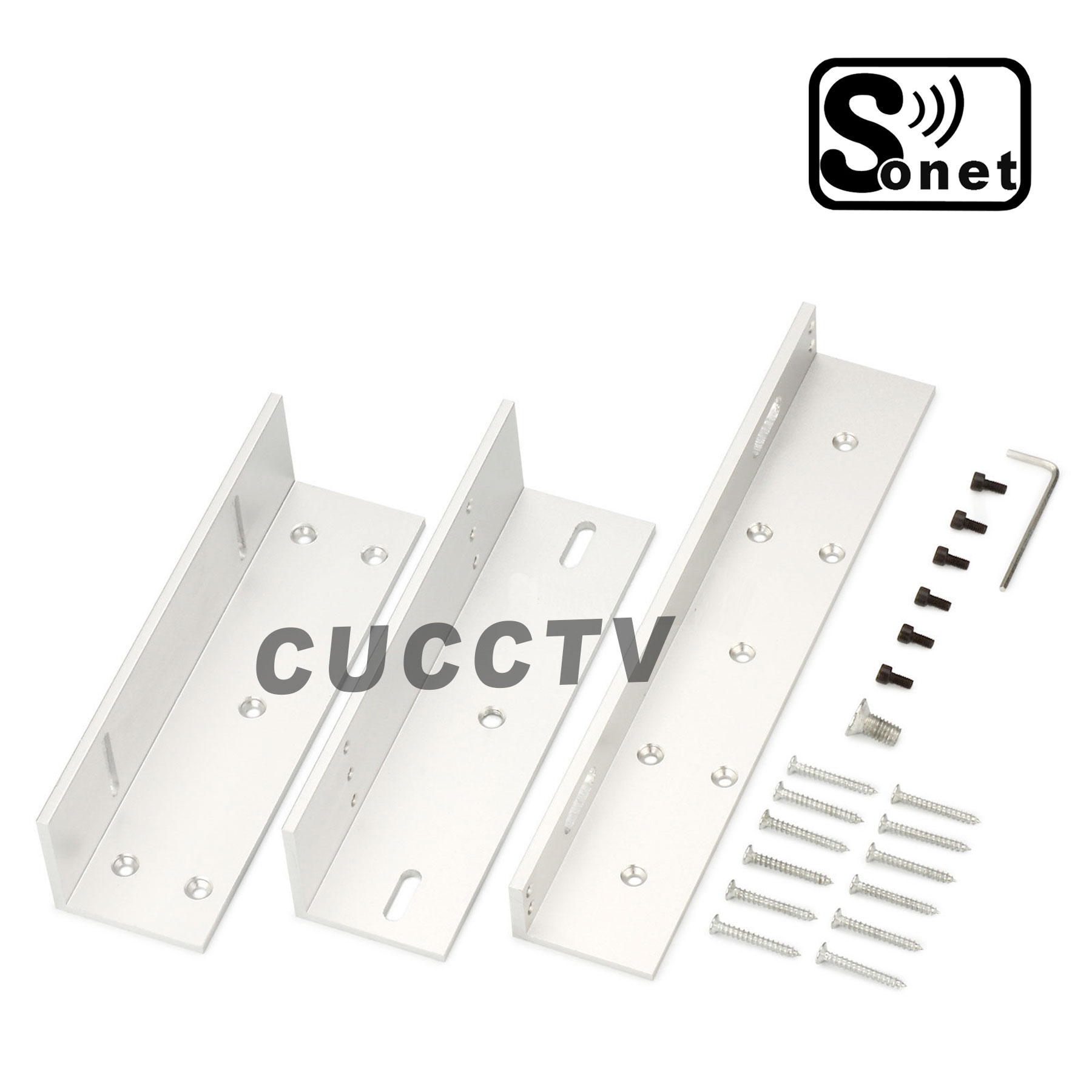

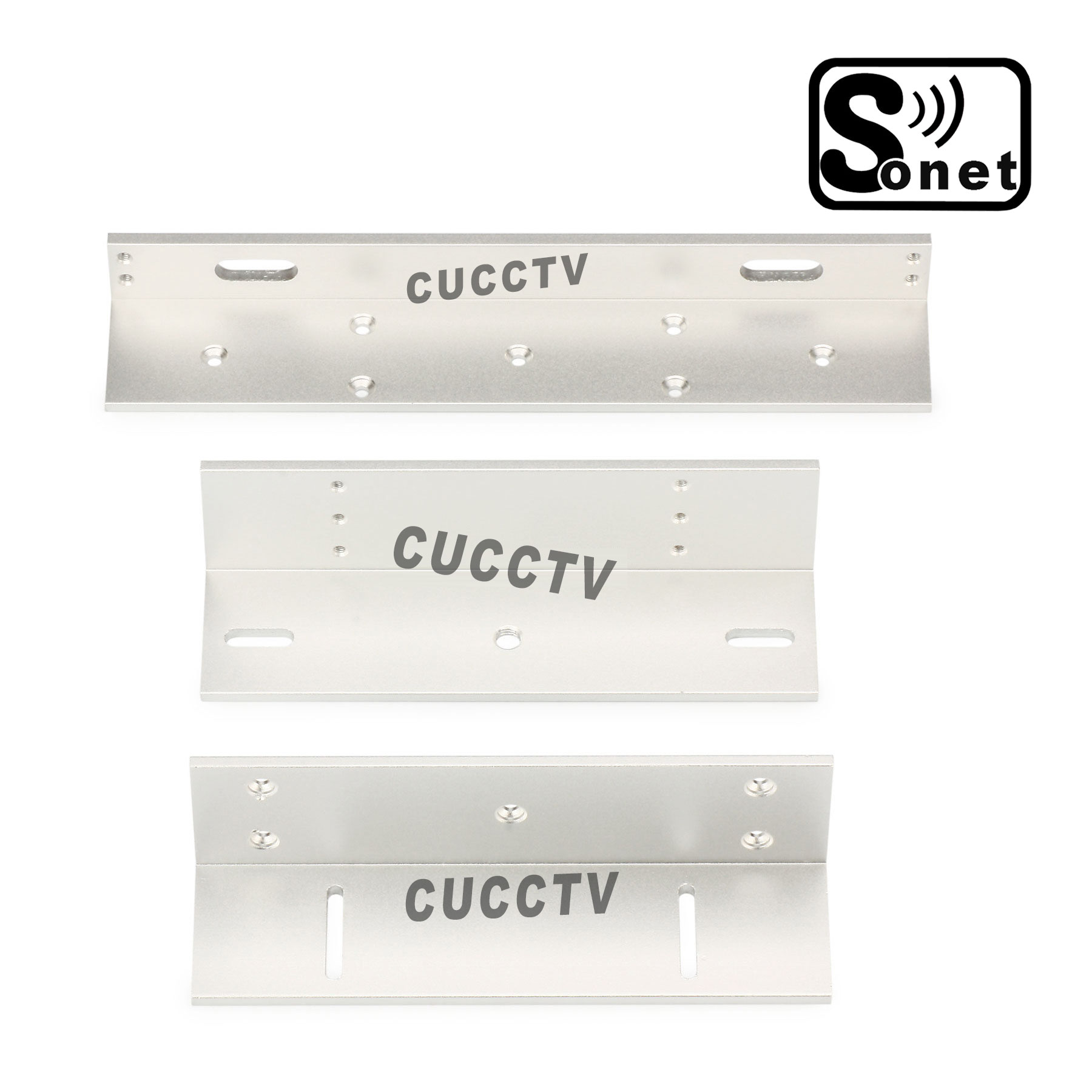

The Z&L MG-280-ZL mounting bracket provides the correct geometry for the armature plate position on a door leaf, compensating for the gap between the door face and the frame face and ensuring the armature plate sits flush against the maglock body when the door is closed. Without an appropriate bracket, the armature plate would be mounted directly on the door face at the wrong depth relative to the lock body.

For inward and outward opening doors, the bracket configuration differs. Installers should confirm the door swing direction before ordering the bracket to ensure the correct variant is selected.

For access control engineers across London and the UK completing electromagnetic lock installations on fire doors, entrance doors, and controlled access doors, the Z&L 280KG mounting bracket is an essential component of the complete maglock installation that ensures the lock achieves its rated performance.

Key Features

• Mounting bracket for 280KG (600lb) electromagnetic lock armature plate
• Ensures correct alignment between maglock body and armature plate
• Correct bracket geometry achieves the full 280KG rated holding force
• Essential component for a complete and correctly performing maglock installation
• Compensates for door leaf to frame gap at the lock position
• For use with 280KG single-door electromagnetic lock systems
