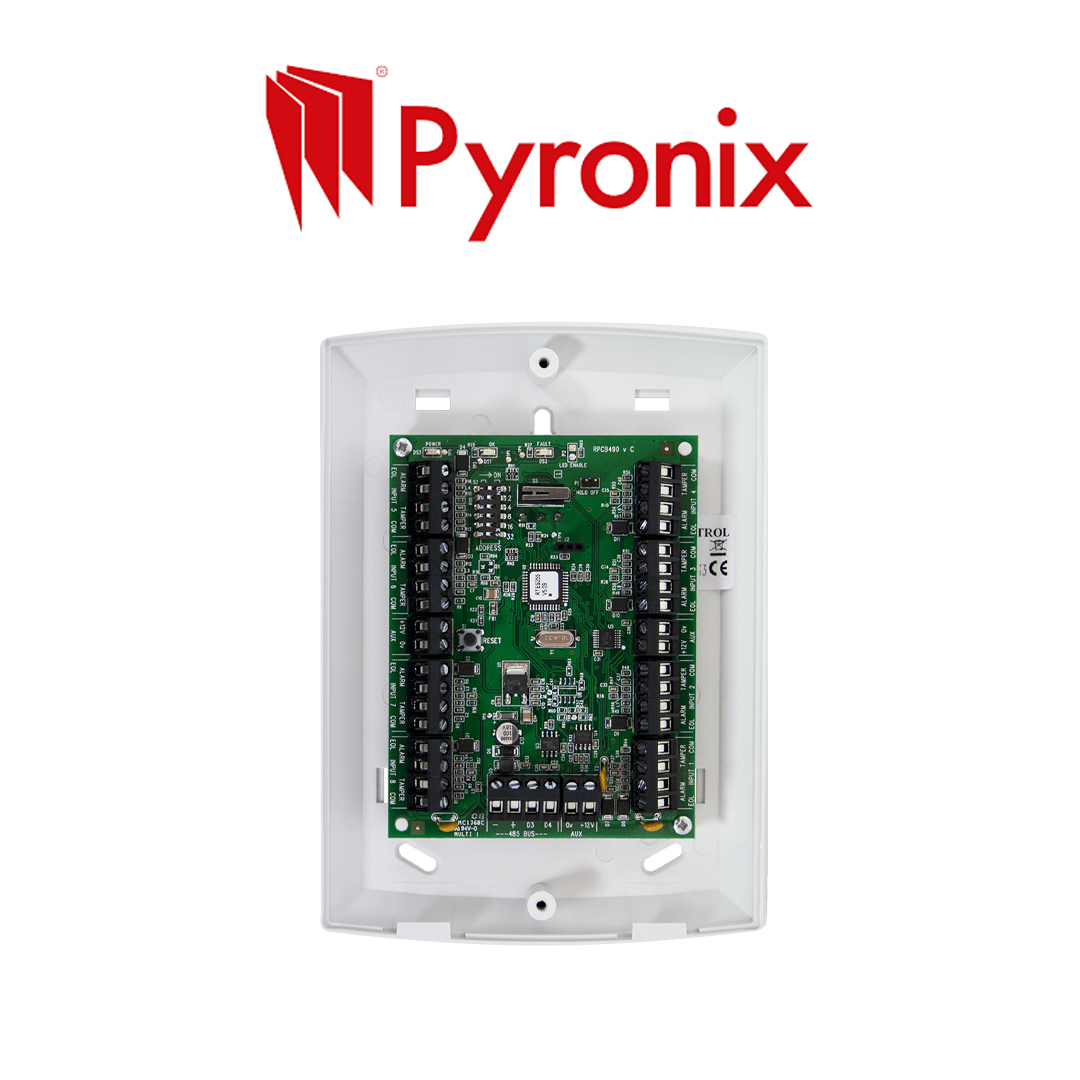

Pyronix Expander Zone 8 Double Pole Boxed
Login to see price
1 in stock
- RS485 Expander
- 8 Double Pole or Double EoL Inputs
- In polycarbonate box with window
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Description
Expand your systems potential
Expand your security system with the 8 input expander. With a further 8 wired devices to both existing or new EURO control panels you can seamlessly adapt your security system to suit your needs.
Robust polycarbonate end station
The lightweight and strong polycarbonate casing has tamper protection for that extra peace of mind that you are protected.
Wiring options
The EURO-ZEM8 DEOL / Double Pole expander will accept either Double Pole wiring or Double End-of Line wiring for each of the 8 inputs.
Resistor values
For Double Pole wiring you will need to set the control panel in 4K7/2K2 mode (4K7 resistor for alarm and 2K2 resistor for tamper).
PSU options
The ZEM8 is suitable for use with an Intelligent Power Supply.
Compact design
Lightweight streamlined polycarbonate casing makes the EURO-ZEM8 input expansion module easy to fit alongside the existing system without taking up too much room.
Input and output expanders technical characteristics
| Plastic housing | Yes |
| Tamper protection | Case tamper |
Inputs & outputs
| Wired EOL inputs | 8 |
| Wired double pole inputs | 8 |
| Total inputs | 8 |
| Outputs on board | 4 |
Environmental and operating features
| Certified operating temperature | -10C to +40C |
| Nominal operating temperature | -10C to +40C |
| Physical dimensions (H x W x D) | 173 x 126 x 31mm | PCB 112 x 64 x 17mm |
| Weight | 260g |
Electrical & battery
| Operating voltage | 10.5V to 15V DC |
| Quiescent current consumption | 40mA |
Certifications and warranty
| Security Grade | Grade 3 |
| Environmental class | II |
| EN Certificate | EN50131-1:2006 | PD6662:2010 |
| Certification type | Self-certified |
| Electrical conformity | CE |
| Warranty | 2 years |
