DC 2.1mm Female Power Connector Socket Plug for CCTV Camera

SKU (Or Product ID): DC-FEMALE-CON

Free UK DeliveryOn orders over £100
Secure Payment256-bit SSL encryption
14-Day ReturnsChange your mind, no reason needed

Product Features:

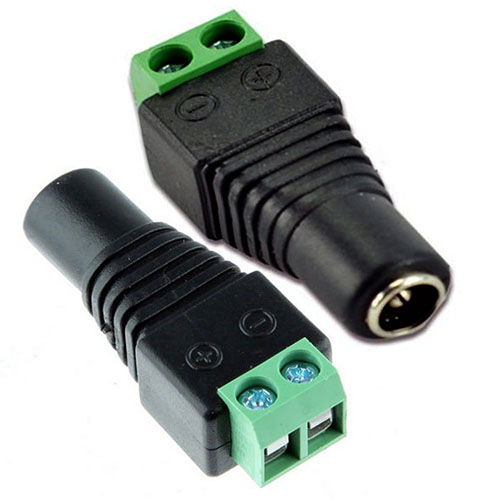

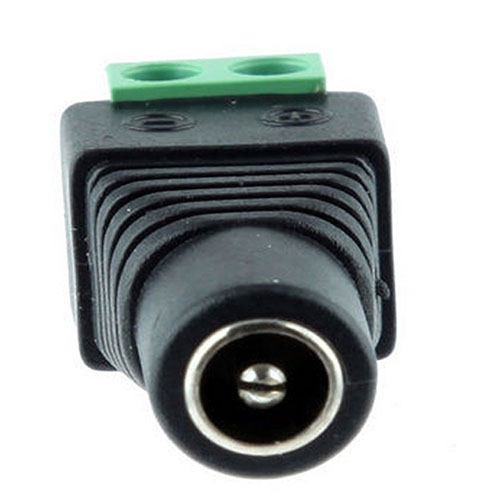

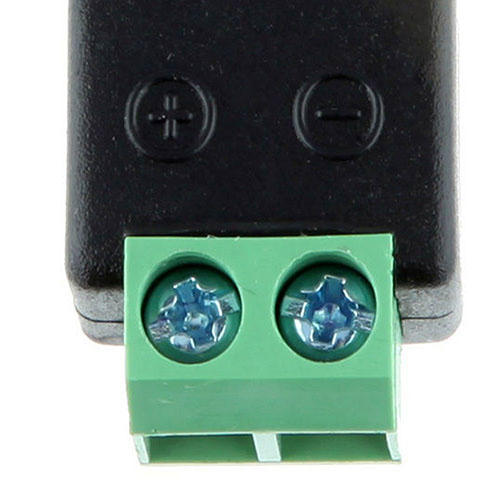

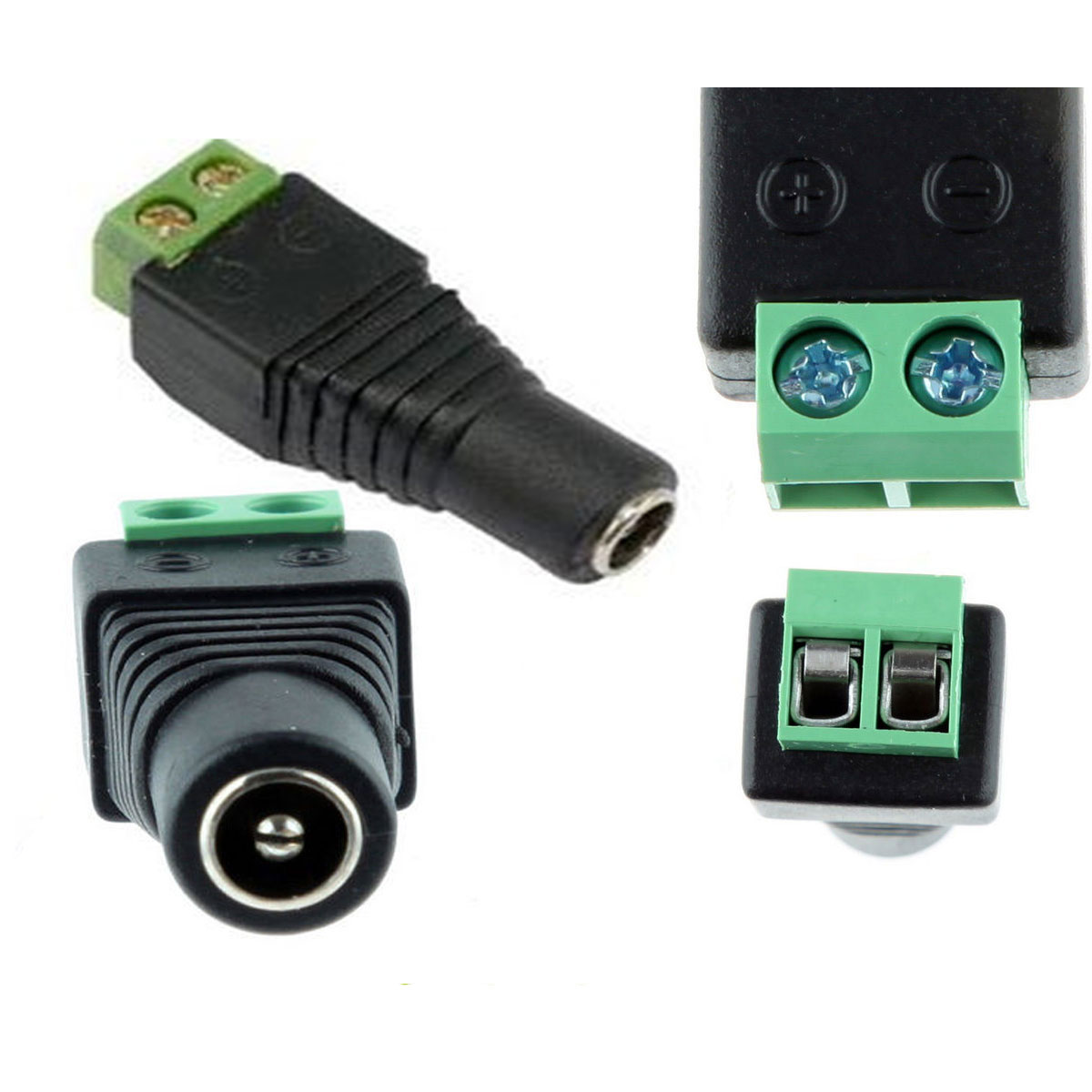

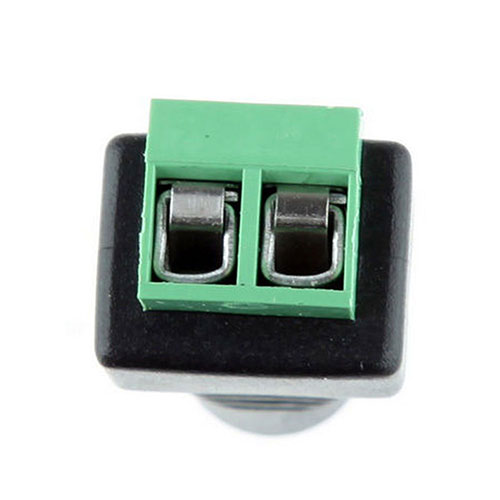

A 2.1mm female DC power socket connector for CCTV cameras and LED lighting. The female socket accepts the male DC plug from a camera or LED device, connecting it to the 12V DC power supply via the installed cable. Used when wiring power from a distribution unit to individual camera positions, particularly when the camera cable does not include a pre-fitted DC plug.

Trade Pricing

Prices are reserved for approved trade accounts. Register or Sign in.

See Your Price Already Registered? Sign In

Available to order

Add to cart or Call us — our team will arrange it

Support actions (Live chat or call) +44 07700 900123

Product DescriptionProduct Details & Description

The 2.1mm DC barrel connector is the standard power connection format for 12V CCTV cameras, LED strips, and many other low-voltage DC devices in the UK. The female socket connector is wired into the end of the power cable from the PSU, presenting a socket that accepts the male plug on the camera's power input.

In CCTV installations, these female connectors are used when running dedicated power cables from a multi-channel PSU to camera positions where the cable does not arrive with a pre-fitted connector. The connector is wired on site by the installer, typically onto a twin-core power cable routed alongside or separately from the coaxial video cable.

The 2.1mm inner diameter is the standard for 12V CCTV cameras. This inner diameter is the critical dimension: a 2.1mm connector fits the 2.1mm male plug on the camera, while a 2.5mm connector will not engage correctly and a 2.1mm connector will not accept a 2.5mm plug. Confirming the correct dimension before ordering avoids the common mistake of mixing 2.1mm and 2.5mm connectors in an installation.

For CCTV installation engineers across London and the UK who terminate their own camera power cables on site, a supply of 2.1mm female DC connectors is a standard consumable stock item alongside the BNC connector and tool inventory.

Key Features

2.1mm female DC power socket connector for 12V CCTV cameras and LED
Standard 2.1mm inner diameter for compatibility with CCTV camera DC plugs
Wire-on connector for termination at the end of power cable runs
Connects power supply cable to camera or LED device power input
Consumable stock item for CCTV installer power wiring
Compatible with 12V CCTV power supply distribution units
