BNC Male Crimp Connectors for RG59 Coaxial Cable 3 Piece

A properly crimped BNC connector provides a mechanically superior and more electrically reliable termination than a quick-fit or push-on connector. The crimp process compresses the connector body firmly onto the coaxial cable jacket and braid in a single controlled operation, producing a termination that maintains its electrical and mechanical integrity over the life of the installation.

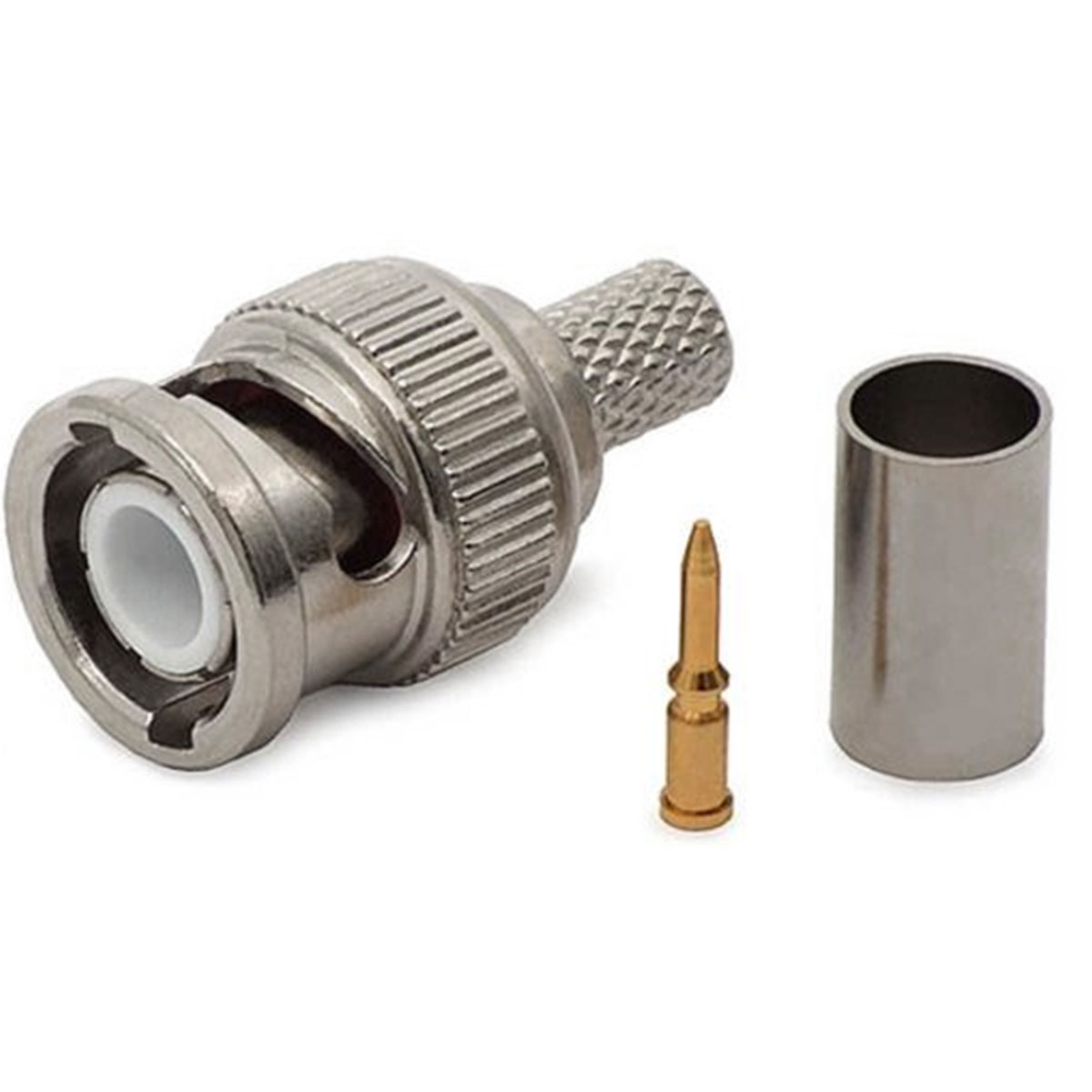

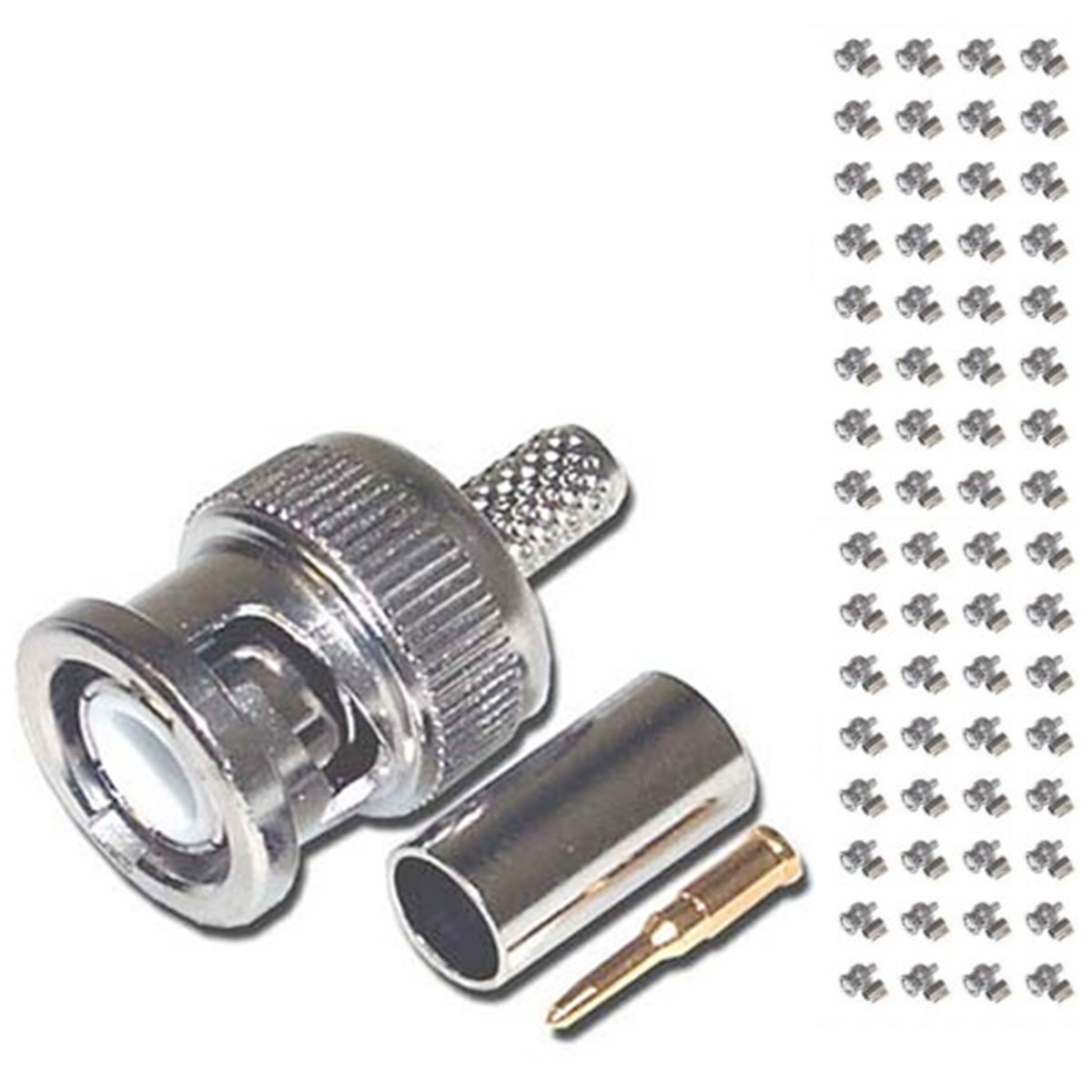

The 3-piece BNC crimp connector for RG59 consists of the connector body, which engages with the mating BNC socket, the ferrule, which is the sleeve that is compressed by the crimping tool onto the cable jacket and braid, and the pin, which is pressed or crimped onto the centre conductor. These three components are assembled onto the prepared cable end and crimped using a compatible RG59 BNC crimping tool.

RG59-specific BNC connectors must be used with RG59 cable. The ferrule and body dimensions are calibrated for the RG59 cable diameter, and using connectors dimensioned for a different cable type will result in an improperly crimped connection. RG58 and RG62 cables require their own specific crimp connector dimensions.

For CCTV installation engineers across London and the UK who terminate BNC connectors on RG59 coaxial cable as a standard part of their installation process, the 3-piece crimp connector in this format is the component required for a professional crimped BNC termination.

Key Features

• 3-piece BNC male crimp connector set for RG59 coaxial cable
• Includes body, ferrule, and pin for a complete crimped termination
• Requires a compatible RG59 BNC crimping tool to complete the termination
• Produces a mechanically secure and electrically reliable BNC connection
• Calibrated for RG59 cable diameter: not interchangeable with RG58 connectors
• Standard crimped BNC termination for professional CCTV installations
