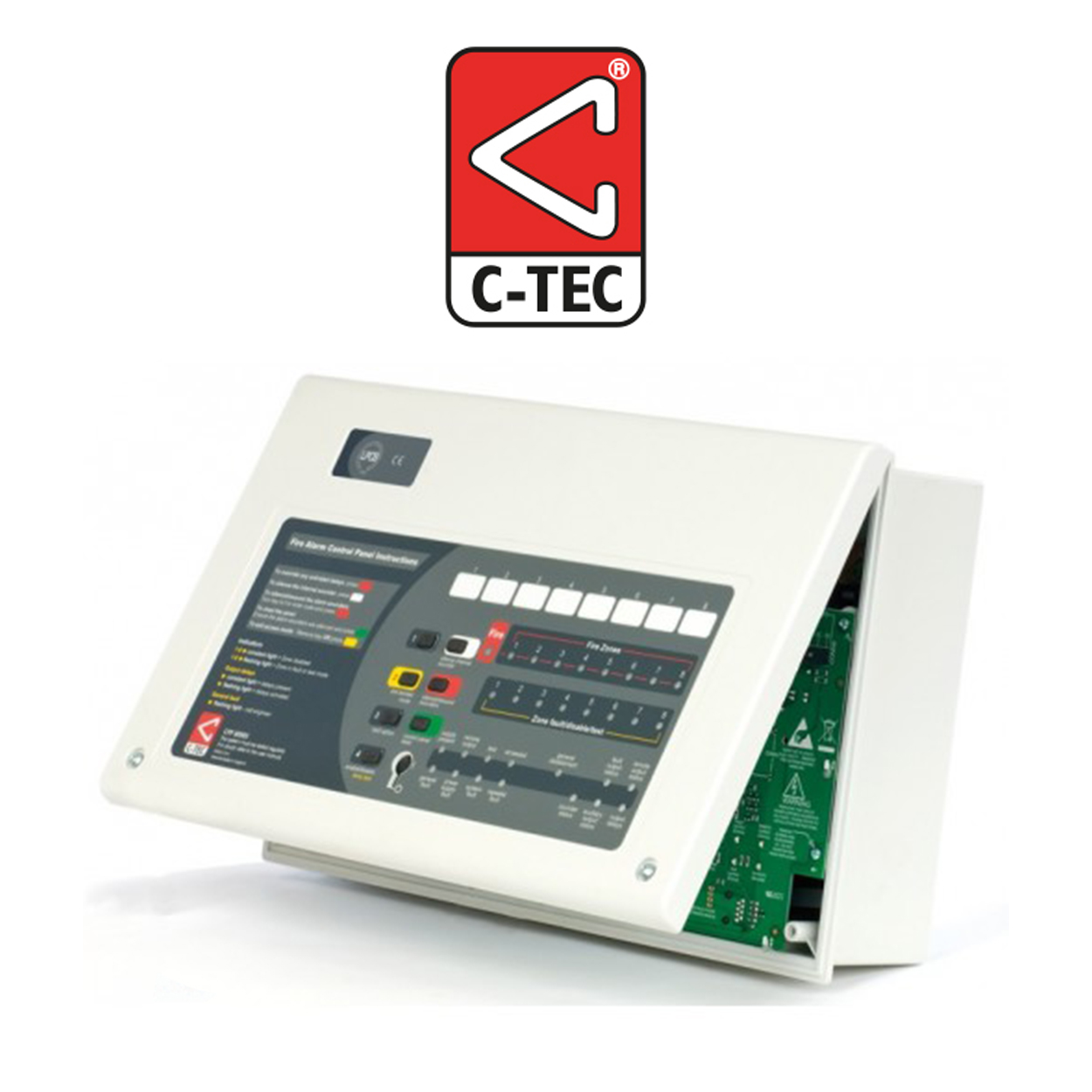

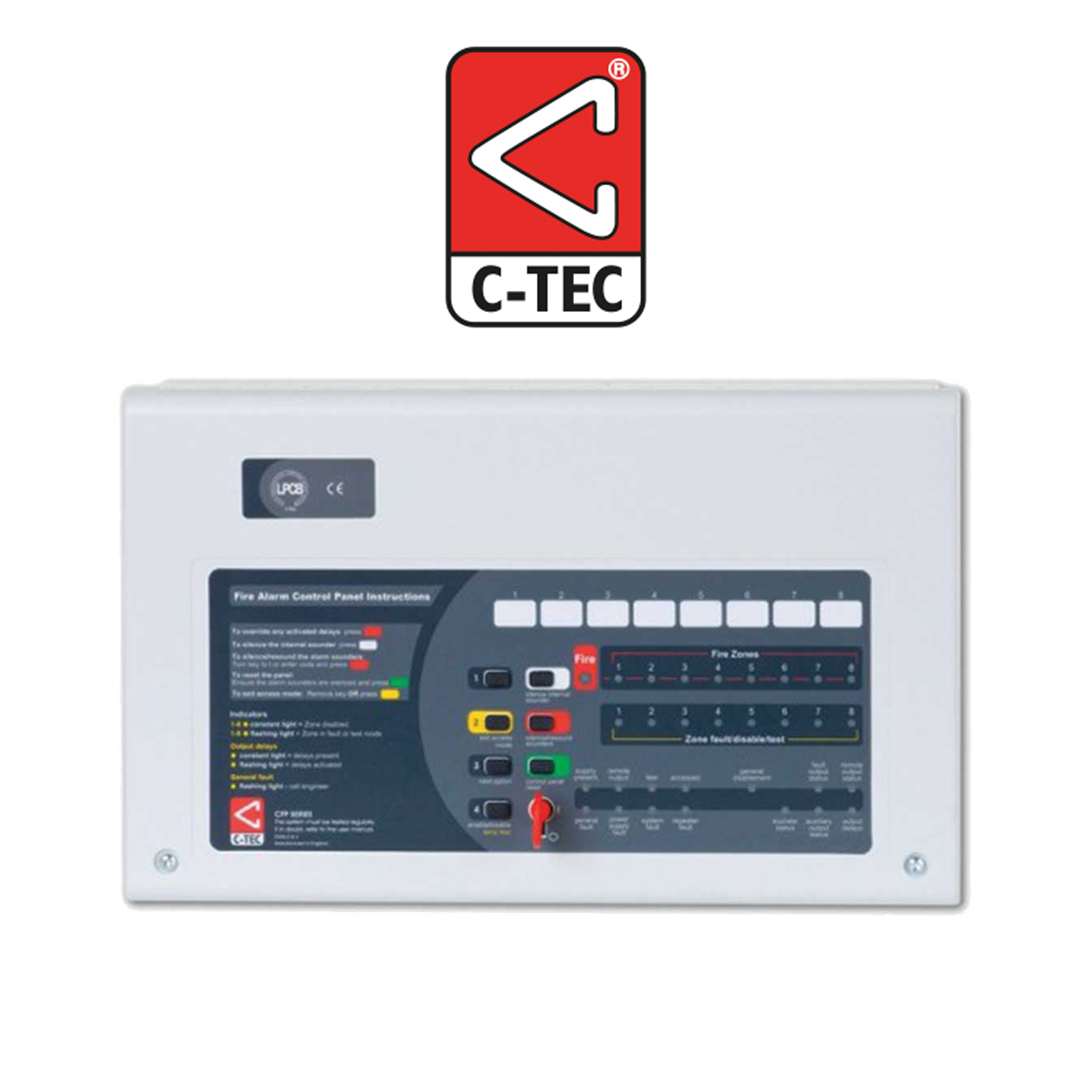

C-TEC CFP 8 Zone Repeater Panel CFP760

Login to see price

2 in stock

Can be used to repeat the functions of a master CFP standard or AlarmSense 2-8 zone fire panel at remote parts of site (e.g. all potential fire service entrances).
Up to 8 repeaters per CFP master.
Includes its own Mains power supply that requires its own standby battery supply.
Provides the user with access to all AL1 and AL2 functions.
Master/Repeater communication achieved using CFP761 network driver cards (one CFP761 is supplied with the Repeater an additional CF761 card is required at the master CFP).
Communicates over screened two-wire fire resistant cable.
Total repeater network cable length should not exceed 1KM.
Attractive flush or surface mountable plastic lid and enclosure – no bezel required.

Our courier will deliver to the specified address

2-3 Days

From $20

DHL courier will deliver to the specified address

2-3 Days

From $40

Compatibility	Compatible with C-TEC’s CFP Standard and CFP AlarmSense panels. (CFP Economy panels cannot be extended with this product).
Mains supply	230V 50/60Hz.
Internal power supply	19V-28.5V (27V nominal).
Max battery size and type	2 x 12V 2.1Ah VRLA connected in series for 72 hour standby. 2 x 12V 1.2Ah for 24 hours.
Max. network cable length	1KM.

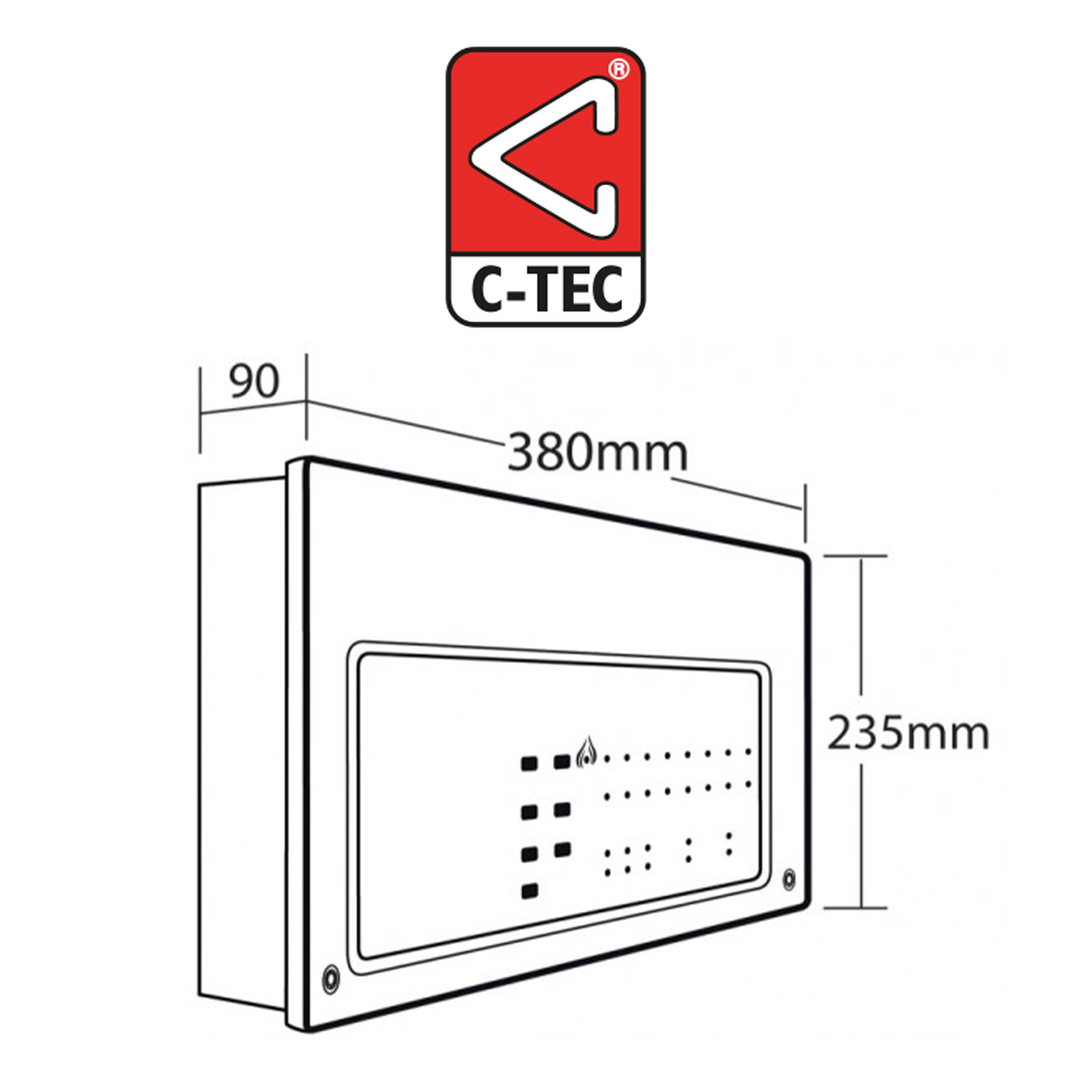

Product dimensions (mm)	380 W x 235 H x D 96mm.
Construction & finish	Plastic lid and base; RAL7035 textured
IP Rating	IP30.
Weight	1.75kg (without batteries)
Operating conditions/temperature	-5ºC to +40ºC. Max relative humidity: 95%.
