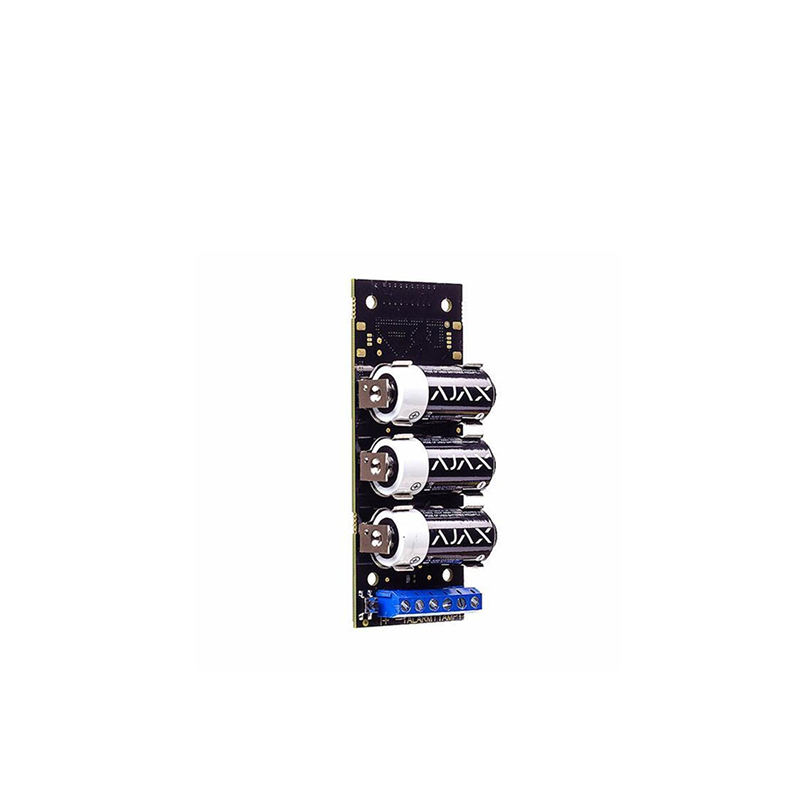

Ajax Transmitter-Module for integrating a wired third-party device into Ajax (56211)

Name: Ajax Transmitter-Module for integrating a wired third-party device into Ajax (56211)
Brand: Ajax
SKU: #56211
Availability: InStock

Login to see price

2 in stock

Compare

Add to wishlist

Shipping & Delivery

Courier delivery

Our courier will deliver to the specified address

2-3 Days

From $20

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From $40

Warranty 1 year

More details

Free 30-Day returns

More details

Specification

Description

Transmitter

Wireless module for connection of outdoor motion detectors IR barriers level detectors and gas detectors thermal relays and any third-party devices with wired output to the Ajax security system.

Authentication to prevent forgery
Jamming detection and communication channels encryption
Two-way communication with detectors

Converts third-party detectors to the Ajax full-featured devices
It can be used as a power supply for third-party devices
Operates at a temperature of +50°С to -25°С and humidity up to 75%

Principle of operation

The device receives the activation signal from the detector via wired input and sends an alarm to the hub.

Features

It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened.

Installation and set up

It is installed in the enclosure of outdoor detectors or a mounting box.

Classification	Module for third-party detector integration
Device type	Wireless
Installation method	Indoors/outdoors
Compatibility	Operates with all Ajax hubs range extenders
Alarm input	1
Tamper input	1
Power supply current	Terminals +/−
Power supply output	3.3 V
Battery charge indication	Yes
Alarm signal delivery time	0.15 s
Power supply	Battery: Four CR123A batteries 3 V
Battery life	Up to 5 years
Jeweller radio technology	Communication range with central unit — up to 1600 m in an open space Two-way communication between devices Operating frequencies — 868.0 – 868.6 MHz Self-adjusting RF output power — up to 20 mW Block encryption based on AES algorithm Device polling period — 12 – 300 s
Temperature sensor	Available
Operating temperature range	From -25°С to +50°С
Permissible humidity	Up to 75%
Anti-sabotage	Protection against fraud Jamming detection Accelerometer to detect removal
Remote setting and testing	+
Dimensions	100 × 39 × 22 mm
Weight	74 g
Complete set	Transmitter Three CR123A batteries (pre-installed) Installation set User’s guide
