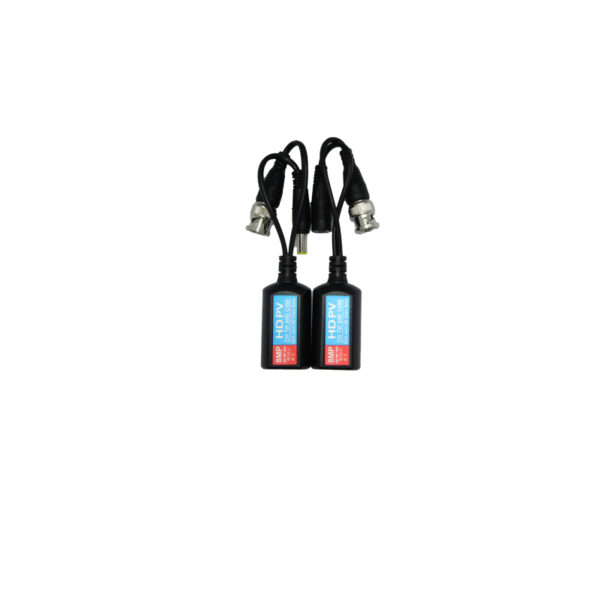

Haydon PoC Video Balun Cat5e Cat6 for HDCVI Cameras up to 8MP 4K PoC

Power over Coax (PoC) is a feature of specific HDCVI cameras and DVRs that allows the camera to be powered through the same coaxial cable that carries the video signal, eliminating the separate power cable run. PoC baluns extend this concept further: they convert the coaxial signal to twisted pair, allowing PoC cameras to run over Cat5e or Cat6 network cable rather than RG59 coax.

This is particularly useful in buildings where structured Cat5e or Cat6 cabling is already installed to the required camera positions: rather than running new coaxial cable alongside the existing network cable, the installer uses the existing Cat cable with the PoC balun pair to carry both the video signal and the camera power.

The balun pair (one at each end of the cable run) performs the electrical conversion between the coaxial signal impedance (75 ohm) and the balanced twisted pair (100 ohm) while maintaining the PoC power delivery. The passive construction requires no external power for the balun device itself.

Support for up to 8MP 4K means the balun handles the signal bandwidth of current-generation high-resolution HDCVI cameras without resolution loss.

For CCTV installers completing PoC HDCVI camera installations over existing Cat5e/Cat6 infrastructure across London and the UK, the Haydon HAY-HDVB01POC-PT provides the PoC video balun for this application.

Key Features

• PoC video balun: transmits HDCVI video and PoC power over Cat5e/Cat6
• Use PoC cameras over existing structured network cable, not coax
• Passive device: no power supply required for the balun
• Supports up to 8MP 4K HDCVI resolution
• Used in pairs: one at DVR/PSU end and one at camera end
• Different from standard video balun: this also carries PoC camera power
