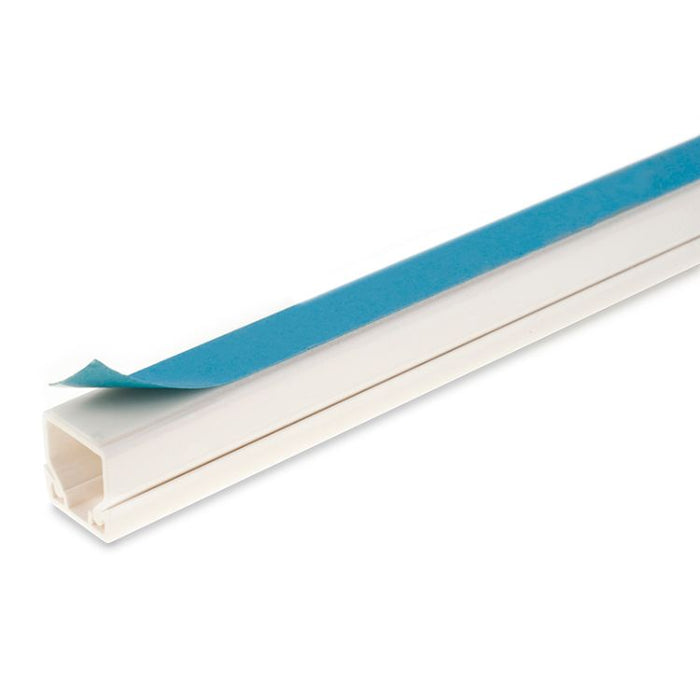

White Cable Trunking 25x16mm 3 Metre PVC for Network and CCTV Cable Management

Cable trunking is the standard method for routing cables visibly along wall and ceiling surfaces in a way that is both protected and professional in appearance. The trunking body is fixed to the surface and the cables laid inside; the removable lid snaps on to enclose the cables and can be removed for future cable additions.

The 25x16mm cross section (25mm wide, 16mm deep) is a standard size for routing Cat5e or Cat6 network cables and coaxial CCTV cables in residential and light commercial installations: the section accommodates two to four Cat5e cables side by side, or a similar quantity of RG59 coaxial cable, depending on cable diameter.

White PVC trunking is the standard finish for interior residential and commercial installations, matching white-painted walls and ceilings and keeping the cable route visually unobtrusive.

At 3 metres per length, the trunking is cut to the required shorter lengths for individual runs. Trunking accessories (corners, junctions, end caps) are available separately to complete neat routing around bends and at termination points.

For CCTV and network installers completing tidy cable management in finished interiors across London and the UK, the 25x16mm white trunking provides the standard cable routing channel for this cable size.

Key Features

• 3 metre length, 25x16mm cross-section: fits 2-4 Cat5e or RG59 cables
• White PVC: standard finish for interior walls and ceilings
• Snap-fit removable lid: accessible for future cable additions
• Fixed to surface, cables laid in, lid snapped on to enclose
• Cut to required length on site with a sharp knife or saw
• Use trunking accessories (corners, ends) for complete neat routing
