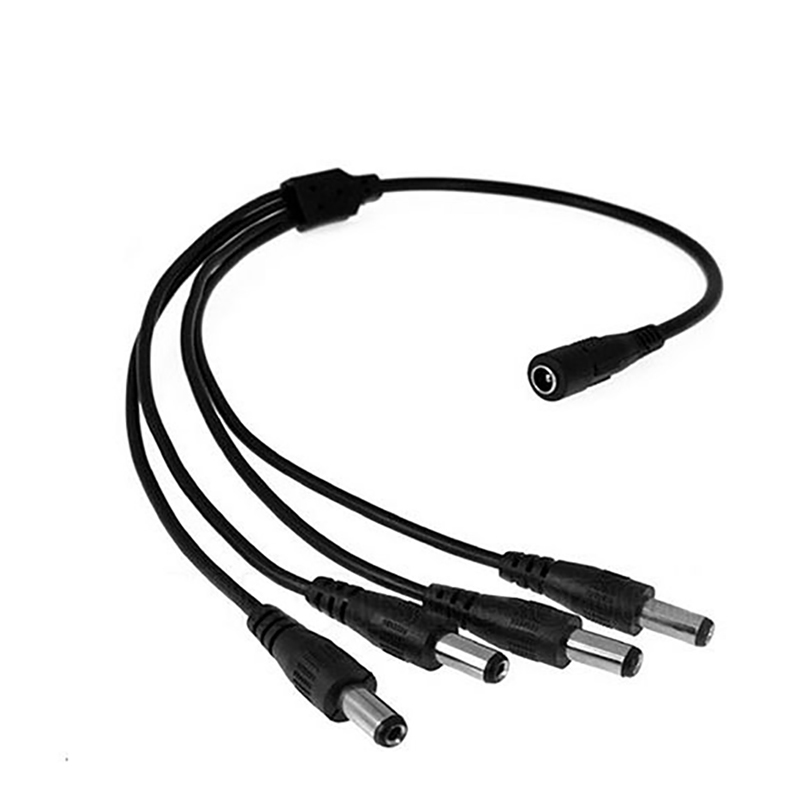

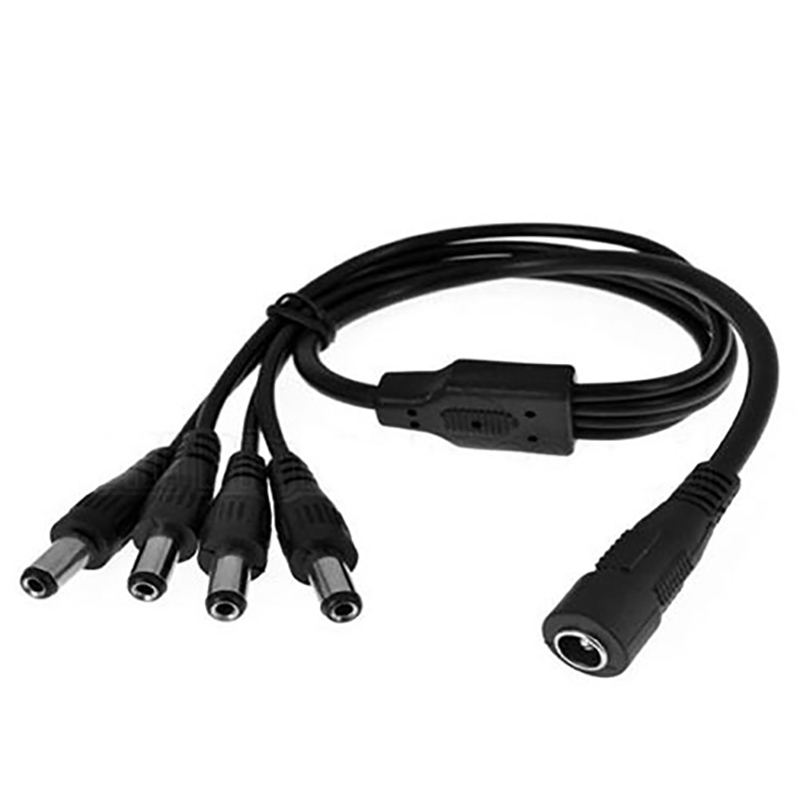

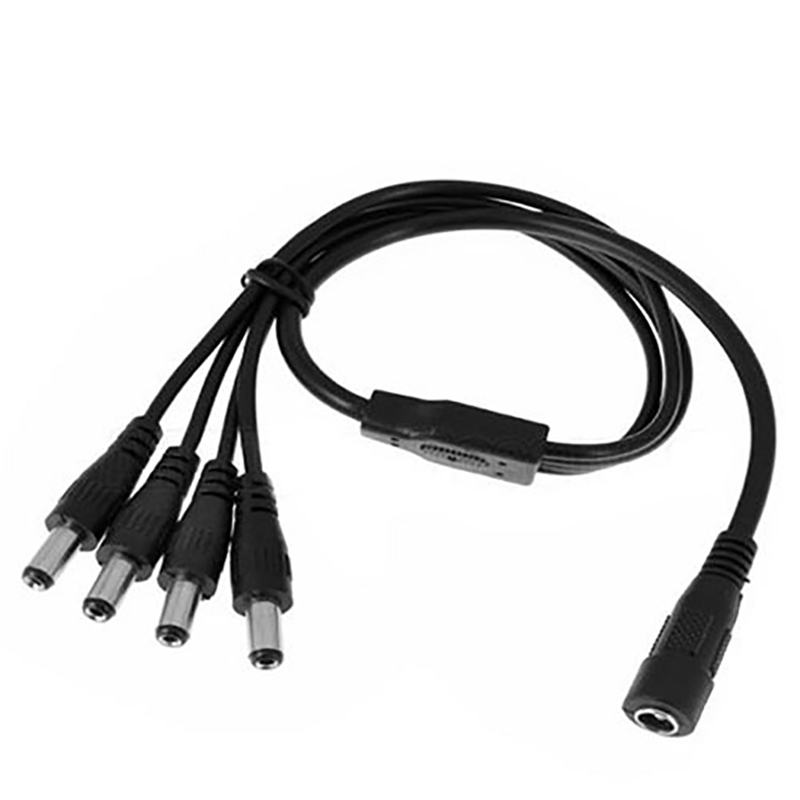

4 Way DC Power Splitter Cable for CCTV Cameras 1 Female to 4 Male

DC power splitters allow a single power supply output to be distributed to multiple cameras, reducing the number of individual PSU channels required and the associated wiring. A 4-way splitter connects one female DC socket (to the PSU output) and distributes 12V to four male DC plugs for direct connection to four camera power inputs.

The practical application is powering a cluster of cameras in the same area of a building from a single PSU output: four cameras in the same room or along the same corridor can be powered from one PSU channel via a splitter rather than running four separate power cables back to the PSU location.

The total current draw of the four cameras must be within the capacity of the single PSU output being used. For four standard HD cameras drawing approximately 500mA each, the total draw of 2A must be comfortably within the rated current of the PSU output. Exceeding the PSU output rating will cause voltage drop and potentially unstable camera operation.

The 2.1mm connector size is standard for 12V CCTV cameras across the UK market. For CCTV installation engineers completing camera power distribution across sites in London and the UK, 4-way DC splitter cables reduce wiring runs and PSU output requirements for grouped camera installations.

Key Features

• 4-way DC power splitter: one female input, four male 2.1mm outputs
• Powers four 12V CCTV cameras from a single PSU output
• Reduces wiring requirements for cameras grouped in the same area
• Standard 2.1mm barrel connector for compatibility with CCTV cameras
• Total camera current draw must be within the single PSU output rating
• Simple plug-in installation without additional tools or connectors
