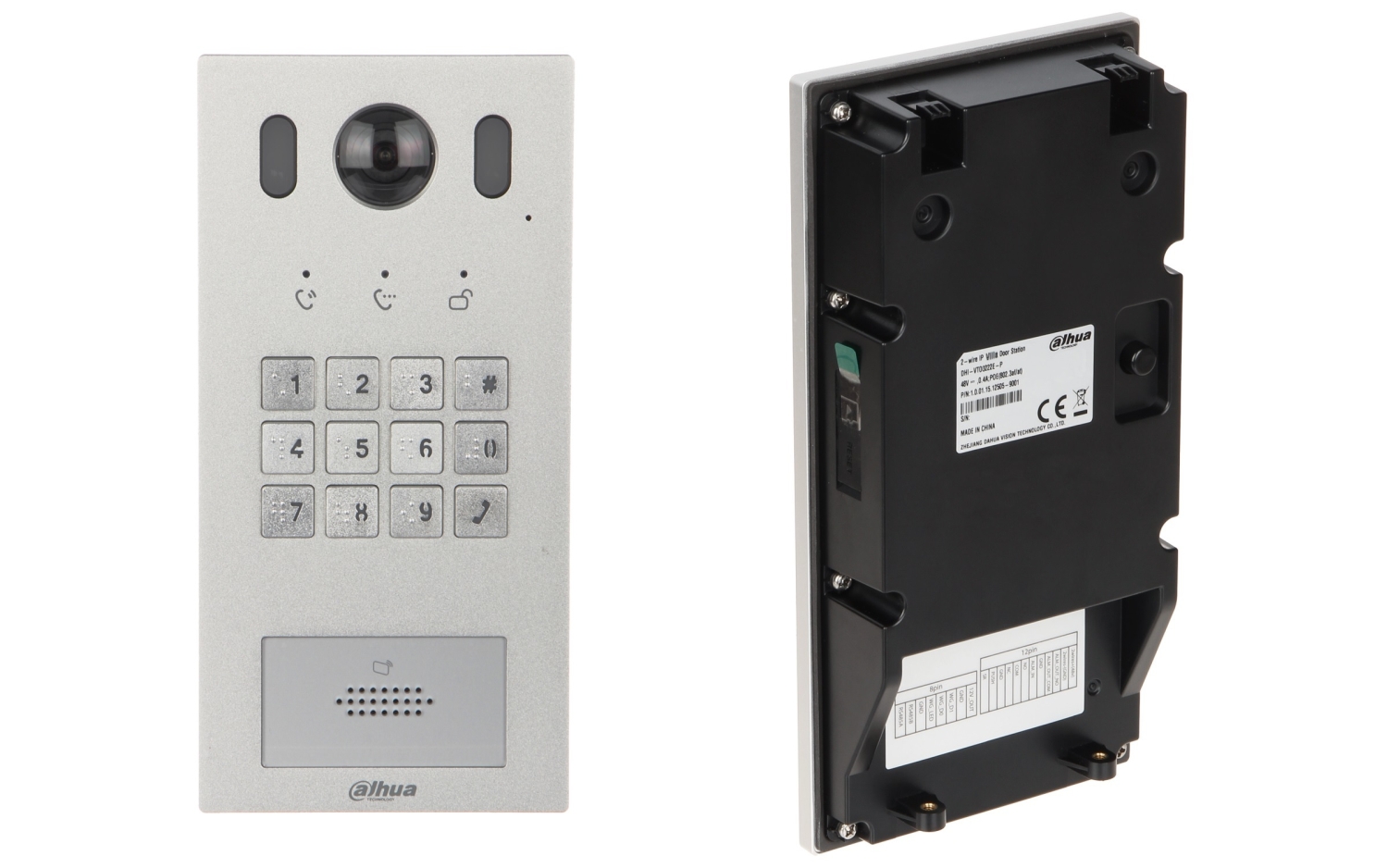

Dahua DHI-VTO3222E-P IP Villa Outdoor Keypad Station 2MP IP55 Stainless

The VTO3222E-P is a combination keypad and camera door station in the Dahua IP intercom range. Unlike a pure video door station (which only provides a camera and call button for video calling), this unit integrates a number keypad and card reader, allowing entry by PIN code or RFID card in addition to the standard call-and-answer video intercom function.

The 2MP camera provides video at the entry point for video calling and for visual recording of visitors and access events. Video and two-way audio communication occurs via the connected indoor monitors (VTH series) or the Dahua app on a smartphone.

IP55 weather resistance (dust ingress protected, protected against water jets) is the standard outdoor rating for permanently installed door stations exposed to UK weather conditions. IK08 vandal resistance indicates the unit is tested to resist 5 joules of impact, providing protection against incidental impacts and casual vandalism.

The stainless steel fascia is the standard finish for outdoor door stations: it combines weather resistance with a professional appearance that suits commercial, residential, and access-controlled building entrances.

The P variant designation indicates PoE powering, meaning the unit receives both data and power from a standard PoE Ethernet switch, eliminating the need for a local 12V DC power supply at the door position.

For security installers completing Dahua IP intercom system installations with PIN and card access at the outdoor station across London and the UK, the VTO3222E-P provides the full-featured outdoor keypad and camera station.

Key Features

• Dahua IP outdoor keypad station with 2MP camera, PIN keypad, and RFID reader
• PoE powered: data and power over single Ethernet cable from PoE switch
• IP55 outdoor rating: protected from dust and water jet exposure
• IK08 vandal resistance: 5-joule impact protection for exposed positions
• Stainless steel fascia: professional outdoor finish
• Integrates with Dahua IP intercom VTH indoor monitors and Dahua app
